The Trunk
|
|
Signal Processing

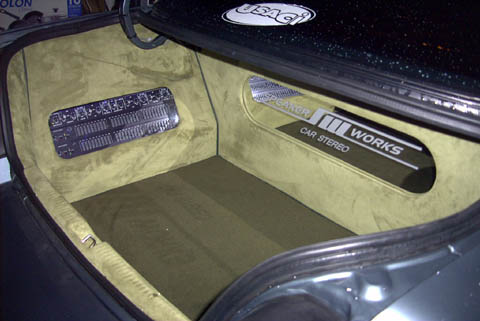

A picture of the left hand side of the trunk, showing the USD Audio
EQs and Crossovers. The trunk is finished in a MicroSuede, just to be
a little bit different.
|
|
Power Distribution

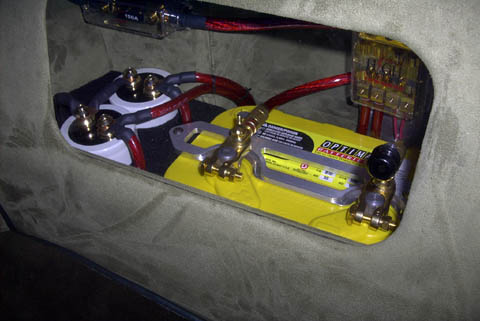

Power Distribution on the right side of the trunk.
|
|
Amplifiers

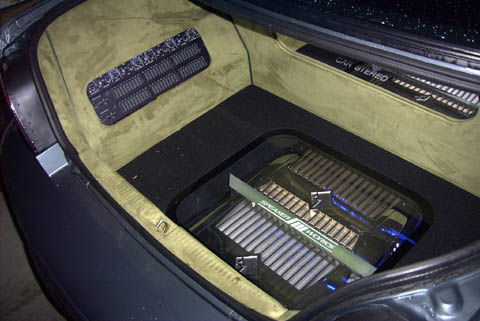

Two Rockford Fosgate Power 1100a2s sit in the spare tire well, supported
by 1 1/2" thick plexi.
|
|
Subwoofer Enclosure

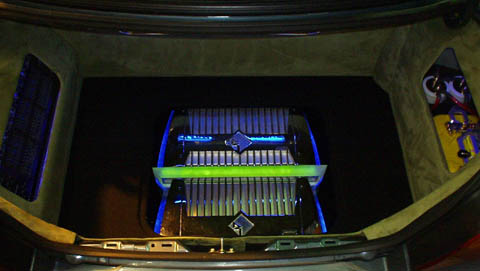

Another picture of the amplifiers, this one with a better view of the
backlighting provided by the LEDs (about 60) under the amplifiers.
|
| |
|
