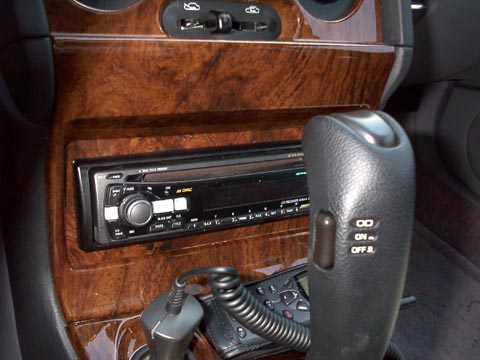

Radio
An older picture showing the Alpine CDA-7840, which was replaced by the
Alpine CDA-7990 F#1 Status for the coolness factor
|
|

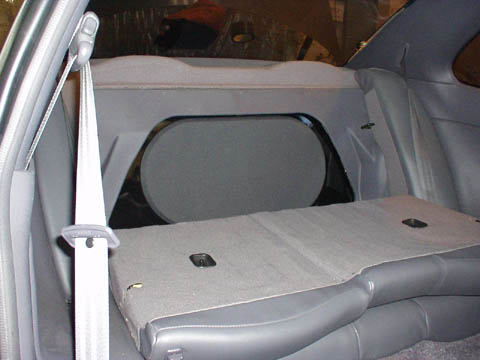

Subwoofer Enclosure
A picture of the subwoofer enclosure behind the rear seats. The enclosure
is finished in black acryllic.
|
|

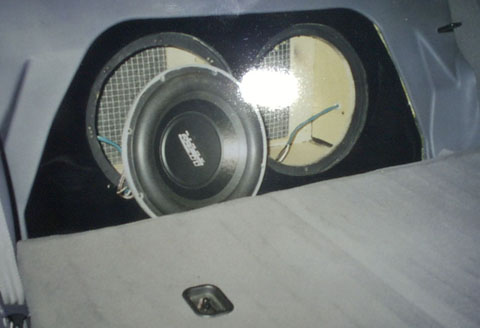

Subwoofer Enclosure
Another picture of the subwoofer enclosure. Here, the AP Mats are visible
and the small size of the enclosure can better be seen.
|
|

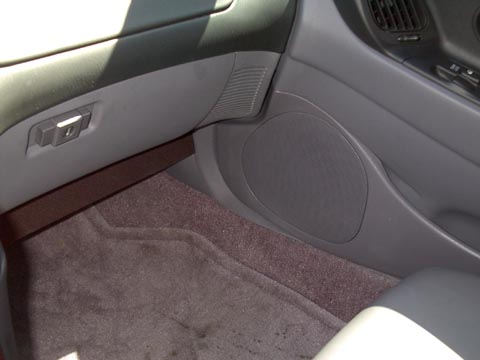

WaveGuides and Midbass
Eight-inch midbasses are located behind the factory grills. WaveGuides
are mounted under the dash, with the grills integrated into the shape
of the car.
|
| |
|
