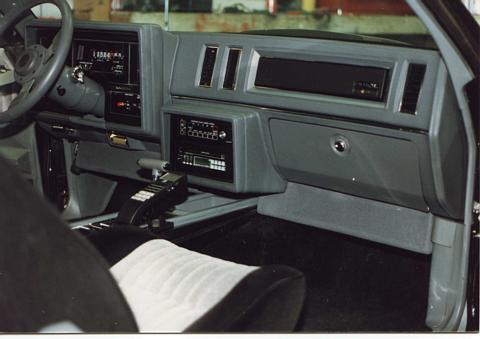

Finished Dash
An overall view of the dash. You can see the two WaveGuides under the
driver's and passenger's sides of the dash. This picture also shows the
radio mount.
|
| |
|
|

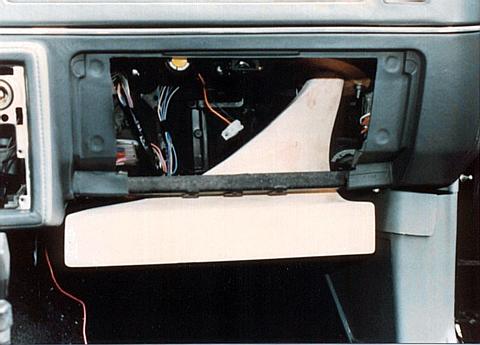

Passenger Side Mold Plug
This is one of the hand made WaveGuide Mold Plugs. Lots of stuff had to be
relocated to do this install. The motor fo rthe WG is ALL the way against
the upper dash bracket and the firewall! You could not get any larger driver
into this area!
|
| |
|
|

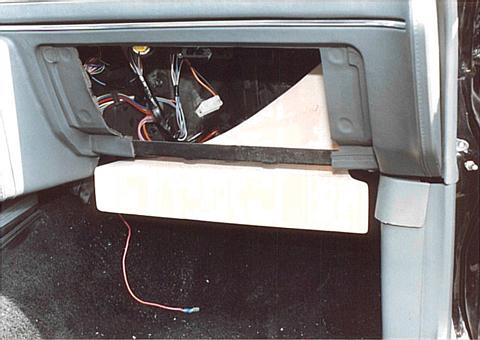

Passenger Side Mold Plug
Another view of the Passendger Side Mold Plug for the WaveGuide. This view
is from the right, and offers a different perspective on the throat of
the WaveGide.
|
| |
|
|
Passenger Side Mold Plug
This is one of the hand made WaveGuide Mold Plugs. Lots of stuff had to be
relocated to do this install. The motor fo rthe WG is ALL the way against
the upper dash bracket and the firewall! You could not get any larger driver
into this area!
|
| |
|
|

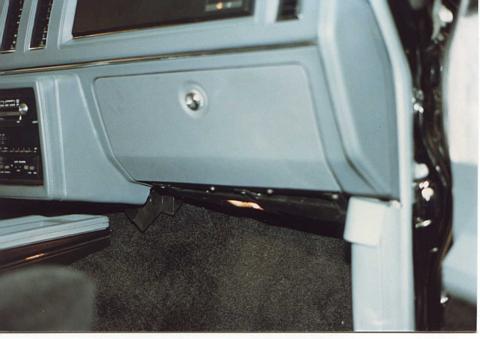

Passenger's Side
This is a picture of the passenger's side of the car prior to the WaveGuide
being installed. As you can see from the picture of the plugs, a lot of
equipment had to be relocated in order to fit the WaveGuide into this location.
|
| |
|
|

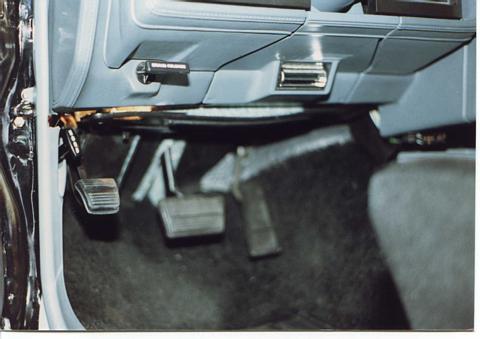

Driver's Side
This is a picture of the driver's side of the car prior to the WaveGuide
being installed. As you can see from the picture of the plugs, a lot of
equipment had to be relocated in order to fit the WaveGuide into this location.
|
| |
|
|

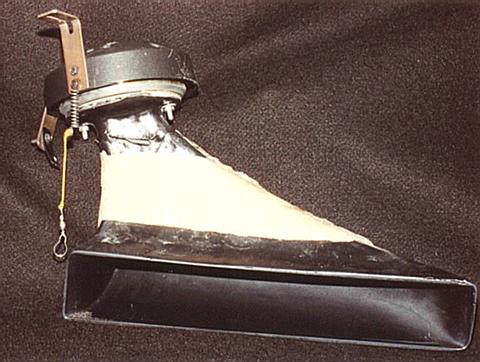

Driver's side WaveGuide, out of car
This is a picture of the driver's side WaveGuide prior to being installed
in the Buick Grand National. The White coating is a non-drying clay that
was used to mass damp the WaveGuide in the old days.
|
| |
|
|

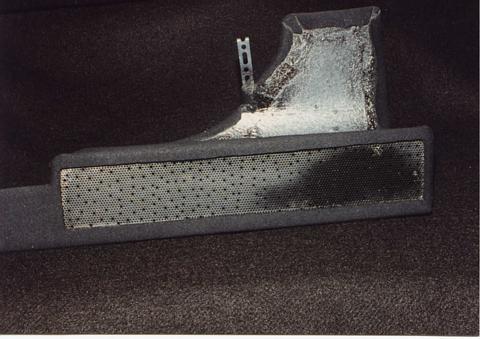

Passenger WaveGuide Grill
This is a picture of the passenger side WaveGuide grill.
|
| |
|
|

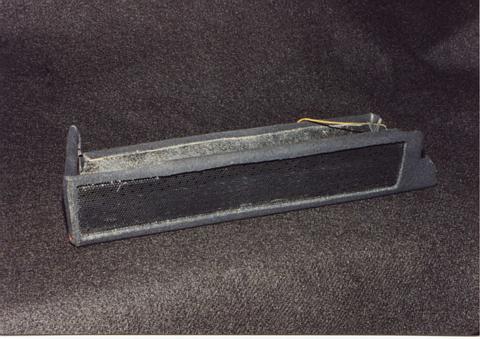

Driver's side WaveGuide Grill
This is a picture of the driver's side WaveGuide Grill, prior to final installation
and upholstry.
|
