Installation Gallery - Ford Bronco

bronco
Ford Bronco

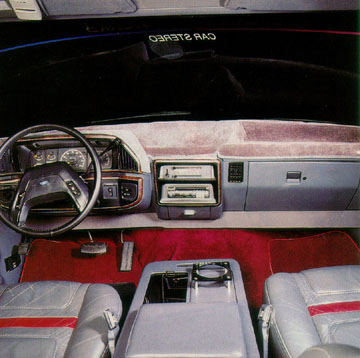

The dash of the Ford Bronco. Notice the integrated WaveGuide grill that runs the entire length of the dash.

bronco
Bronco, Midbass

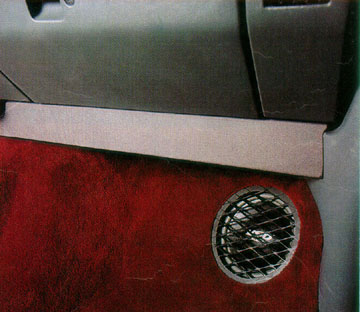

A picture of the passenger side midbass, located in the kickpanel/floor of the vehicle.

bronco
WaveGuide

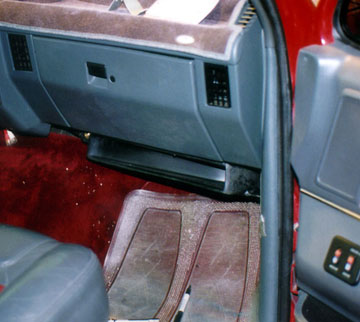

A shot of a WaveGuide being installed in the Bronco. A good example of what a WaveGuide looks like in place but not trimmed out.

bronco
Bronco, rear midbass

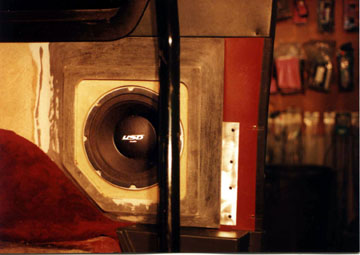

USD Woofer used for midbass reinforcement. Mounted in side of vehicle. This is a picture during constructed.

bronco
Bronco, Subwoofer

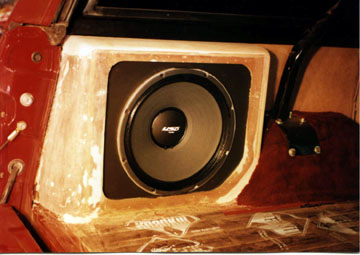

The classic USD Audio Pro 15b subwoofer located in the back of the Bronco. There are two woofers, this one is the left-hand side woofer.

bronco
Bronco, Subwoofer

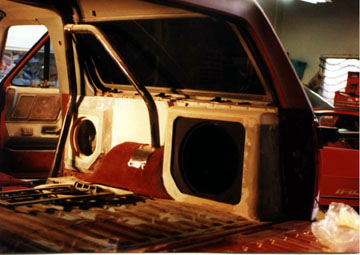

Right side subwoofer enclosure. You can also see how the box molds over the wheel well and up to the midbass enclosure.

bronco
Bronco, Left Panel

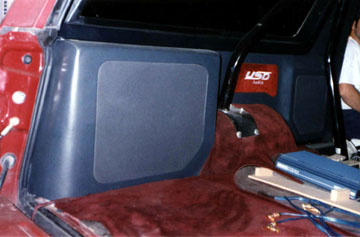

The completed and trimmed out left panel. You can see both the subwoofer and midwoofer enclosures. You can also see the beginning of the amplifier rack.
